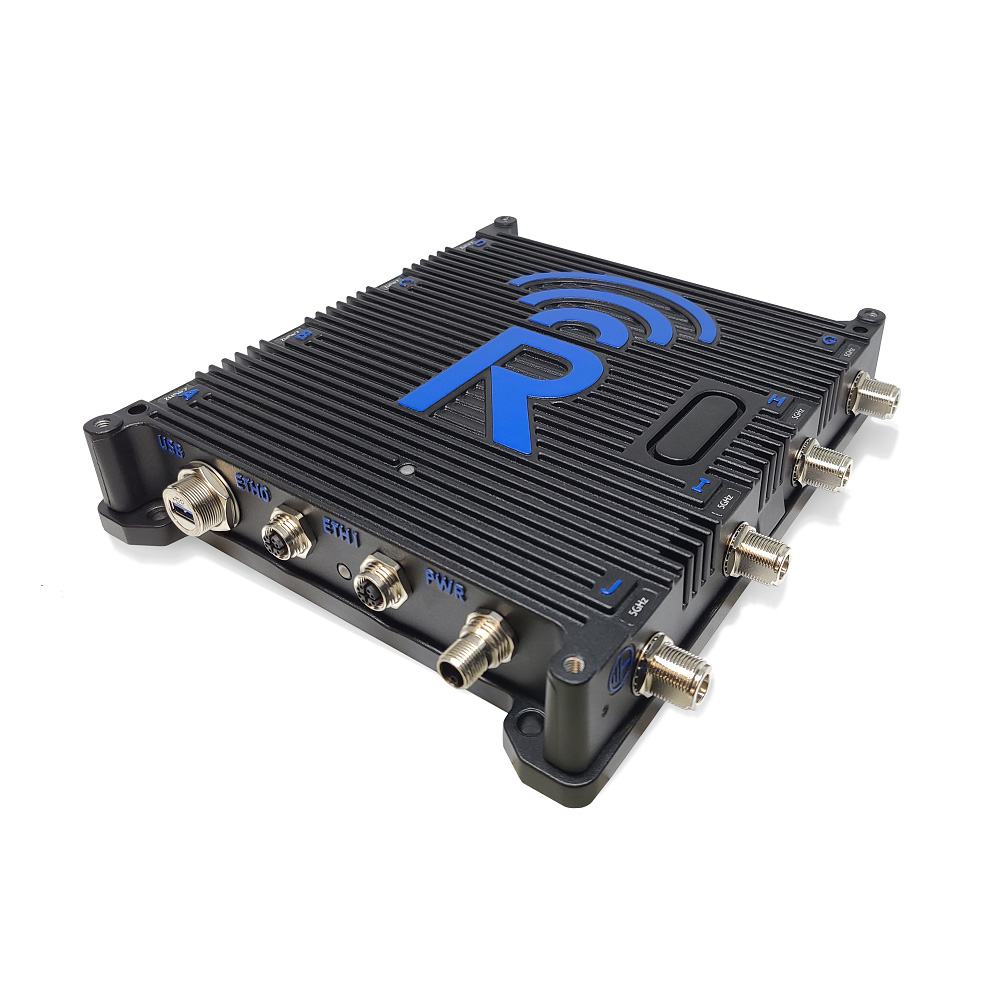

The Rajant FE1-5050 is a high-performance, dual-radio, industrial-grade wireless BreadCrumb featuring Rajant’s InstaMesh protocol for superior throughput and enhanced security. Designed for extreme environments, it supports MIMO operation over multiple frequencies, providing reliable, resilient connections. With dual transceivers, it delivers high-speed, mobile connectivity for high throughput applications like LiDAR and CCTV and remote vehicle operation (tele-operation).
- Dual 2×2 MIMO radio: Ttwo 5 GHz transceivers (866 Mbps signaling rate; OFDM with 256QAM; up to 80MHz channel bw; U-NII-1, 2A, 2C and 3 (5.15 to 5.85GHz).
- Interfaces: Ethernet – two M12 10/100/1000 auto MDIX with support for IEEE 802.3bt Type 3 or 38 to 60 VDC Passive PoE; no squid cables; USB: – USB 2.0 Type A host; DC power – 20 to 60V; and power consumption – 16W average, 36W peak.
- Integrated 802.11AC Wi-Fi Access Point and client service for compatibility with millions of commercial off-the-shelf Wi-Fi client devices such as laptops, tablets, smartphones, IP cameras, sensors, and other IP devices
- Max RF TX Power: 30 dBm conducted.
- Enclosure rating: IP67.
- Security: Configurable per-hop, per-packet authentication between BreadCrumbs; multiple cryptographic options; and optional MAC address encryption.
- Form Factor: 264.9 mm x 253.7 mm x 46.2mm (10.43” x 9.99” x 1.82”) and 2946 g (6 lbs. 7.9 oz.).
- Temperature: Ambient (operating) -40°C to 70°C (-40°F to 158°F) and storage: -40°C to 80°C (-40°F to 176°F).
